Nickel Titanium Flat Wire Astm F2063 Polished Nickel Titanium Nitinol Wire
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 部門 | 形の記憶 | 表面 | ポーランド/黒い |
|---|---|---|---|
| を使用して | 採取/ガラス/医学/企業 | 材料 | nitinol |
| NI （分） | 54.5-57% | パッケージ | 木箱のパッケージ |
| ハイライト | Nickel Titanium Flat Wire,Polished Titanium Flat Wire,Astm F2063 Nickel Titanium Wire |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
| Diameter | Tolerances | |
|---|---|---|
| 4.0~2.0mm | ±0.02mm | |
| 2.0~1.0mm | ±0.015mm | |
| 1.0~0.35mm | ±0.01mm | |
| 0.35~0.26mm | ±0.007mm | |
| 0.26~0.15mm | ±0.005mm | |
| 0.15~0.08mm | ± 0.004mm |
製品の説明
Nickel titanium flat wire astmf2063 polished nickel titanium nitinol wire
Nickel titanium (NiTi) flat wire is a shape memory alloy that is commonly used in various medical and dental applications. It is made of a combination of nickel and titanium, which give it unique properties such as superelasticity and shape memory.
NiTi flat wire is typically used in orthodontics for braces because of its ability to apply continuous gentle force to teeth without causing discomfort to the patient. It is also used in other medical devices such as stents, catheters, and guide wires because of its biocompatibility and corrosion resistance.
The flat shape of the wire allows for better control and positioning during dental procedures, and its superelasticity enables it to return to its original shape even after being bent or stretched. Additionally, NiTi flat wire has a longer lifespan compared to traditional metal wires used in orthodontics, making it a popular choice among dentists and orthodontists.
| Name | Grade | Transfermation temperature AF | Form |
Standard
|
| Shape memory nitinol alloy | Ti-Ni-01 | 20℃~40℃ | wire, bar, plate, tube | customer specified or industry standard |
| Ti-Ni-02 | 45℃~90℃ | |||
| Superelastic nitinol alloy | TiNi-SS | -5℃~5℃ | ||
| Low temperature superelastic nitinol alloy | TN3 | -5℃~-15℃ | ||
| TNC | -20℃~-30℃ | |||
| Medical Nitinol alloy | TiNi-SS | 33+/-3℃ | ASTM F2063 | |
| Narrow Hysteresis nitinol alloy | Ti-Ni-Cu | As-Ms≤ 5℃ | wire, bar | |
| Wide Hysteresis nitinol alloy | Ti-Ni-Fe | As-Ms≤150℃ |
Products Show
•Chemical composition: Reference ASTM F2063-2012 or GB 24627-2009;
• Af temperature range: -40C~90C

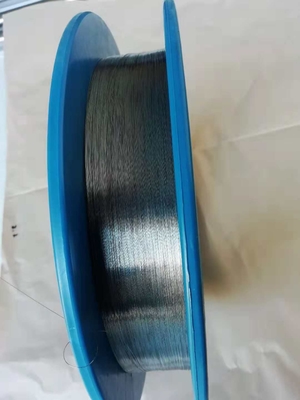

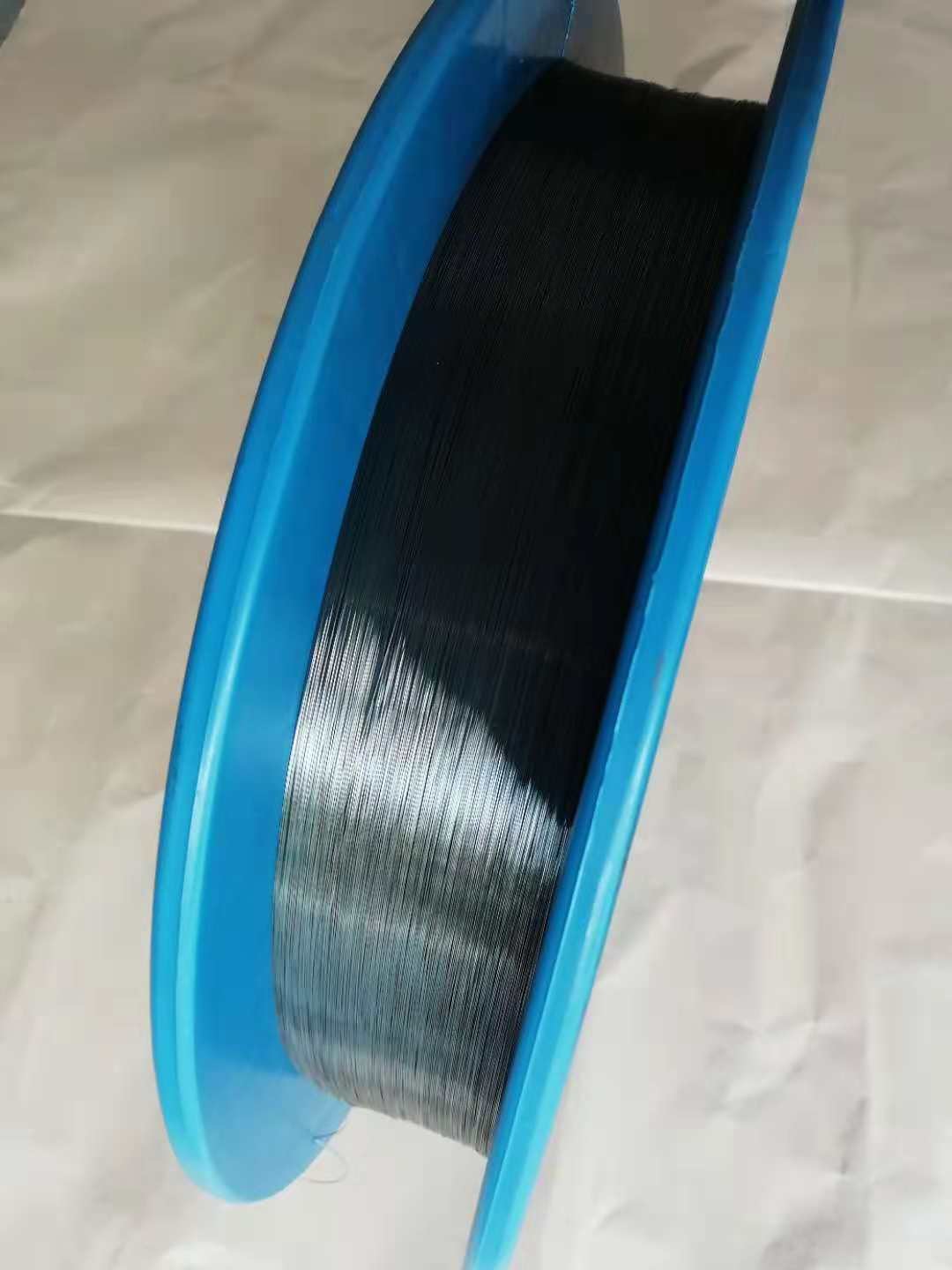

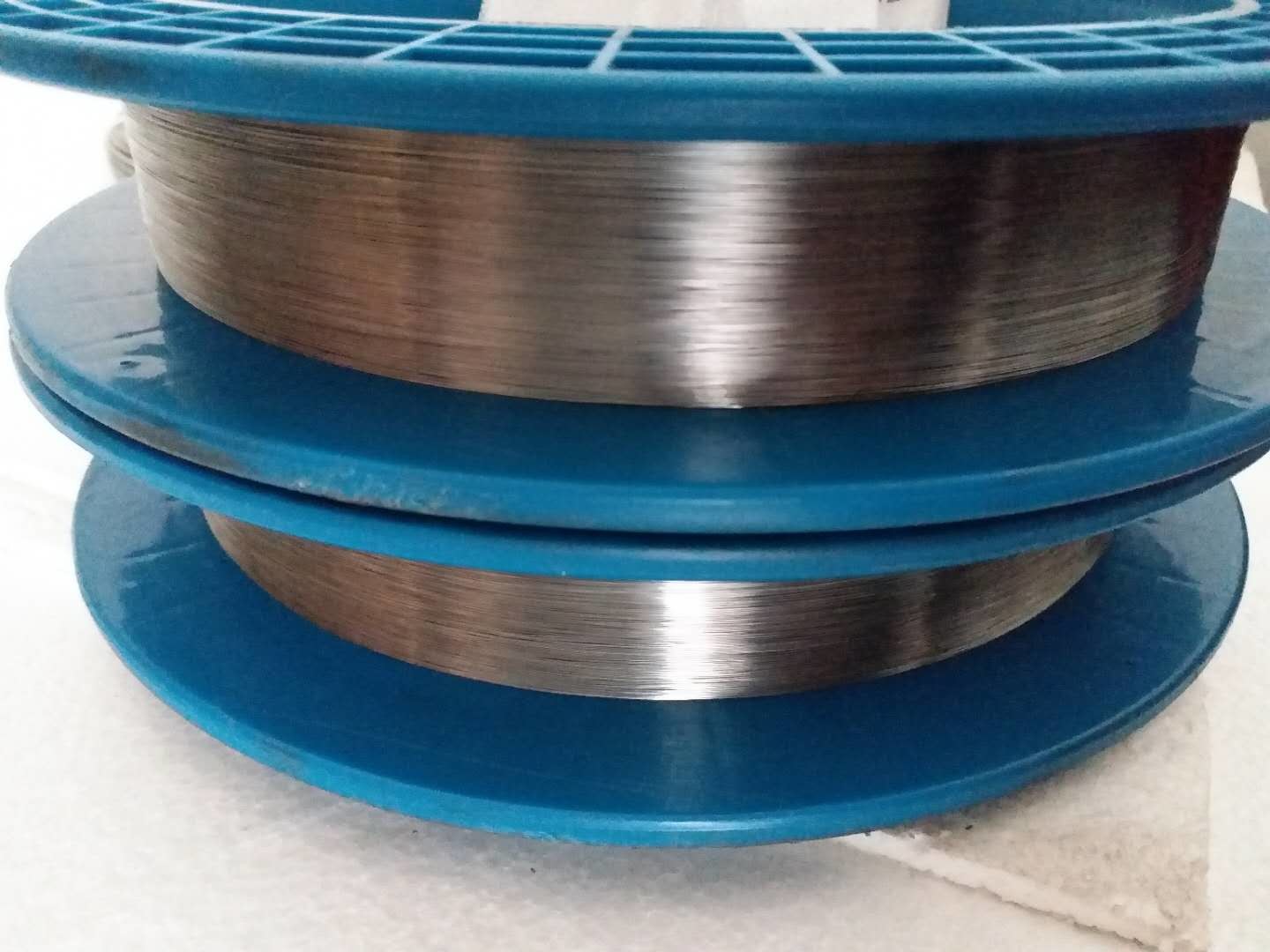

Nitinol Wire
· Diameter 0.25mm
· Surface State Options:
• Oxide surface(including Black oxide, Blue oxide, Amber oxide)
• Etched surface
• Polished surface
• Ground surface
Q1: Can I order a sample quantity ?
A: Yes, we have no MOQ.
Q2: Can I add my logo on the boxes/cartons?
A: Yes,OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.
Q4: How does your factory control the quality of your products?
A: 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q5: Can we mix items in one 20ft container?
A: Yes.
Q6: Can I have a visit to your factory before the order?
A: Sure,welcome your visit of factory.
