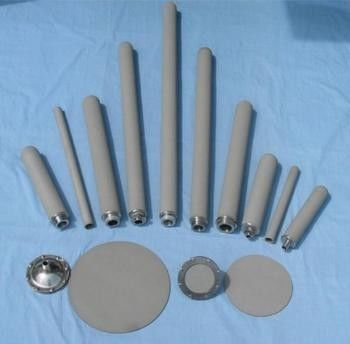

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| ろ過精度 | 0.1um | 耐摩耗性 | 高い |
|---|---|---|---|
| 特性 | 腐食性の高い環境で使用 | ろ過エリア | 0.3-1.0m2 |
| 仕様 | 0.5um、2um、5um、10um、 | 直径 | 50〜1000mm |
| 材料 | チタン、SS 316L、Incenel600など。 | サンプル サービス | テストにサンプルを提供しなさい |
| タイプ | 金属、SSフィルターディスク | 標準 | ISO9000 |
| 作業圧力 | 2-3Mpa | パッキング | 標準エクスポートパッケージ |
| サービスライフ | 2〜5年 | 最大圧力 | 2.0Mpa |
| 寸法 | カスタマイズ | ||
| ハイライト | シンターされた孔隙のインコネル600フィルタープレート,チタンシンターフィルタリングプレート,SS 316L シンター分離板 |
||
製品の説明
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.
Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.
Specifications
| Product Name | Sintered Plate |
|---|---|
| Material | Pure Titanium / SS316L / Bronze / Inconel 600 |
| Size | OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm |
| Filter Accuracy | 0.5–80 µm |
| Connection | Customized according to customer requirements |
| Applications | Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (µm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Applications
The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.
Typical applications include:
-
Sparging
-
Separation and Filtration
-
Carbonation
-
Liquid Filtration
-
Catalyst Recovery
-
Steam Filtration
-
Slurry Oil Filtration
-
Flame Arrestors
-
Sound Silencing
-
Fluid Distribution and Control
-
Semiconductor Manufacturing
-
Fuel Cell Stacks
-
Coating Electrodes
-
Damping and Shock Absorption
-
Heat Exchange
-
Bio-Implants
Properties
-
Uniform pore size and stable pore structure with high separation efficiency
-
High porosity, low filtration resistance, and excellent permeability
-
Outstanding chemical stability and resistance to acids, alkalis, and oxidation
-
Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards
-
Strong mechanical properties, low differential pressure, and large flow capacity
-
Excellent anti-microbial characteristics, non-reactive with microorganisms
-
Easy online regeneration, backwashing, and long service life
-
Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications
-
Effective electromagnetic shielding performance
-
Strong damping and shock resistance
