Sintered Porous Round Discs For Separation And Filtration
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | 純粋なチタニウムの粉 | 形 | 円形 |
|---|---|---|---|
| サイズ | カスタマイズされる | 適用 | 分離およびろ過 |
| サンプル | 利用できる | フィルター評価 | 0.5um-80um |
| ハイライト | Separation Sintered Porous Disc,Pure Titanium Powder Sintered Porous Filter,Metallic Powder Sintered Disc Filter |
||
製品の説明

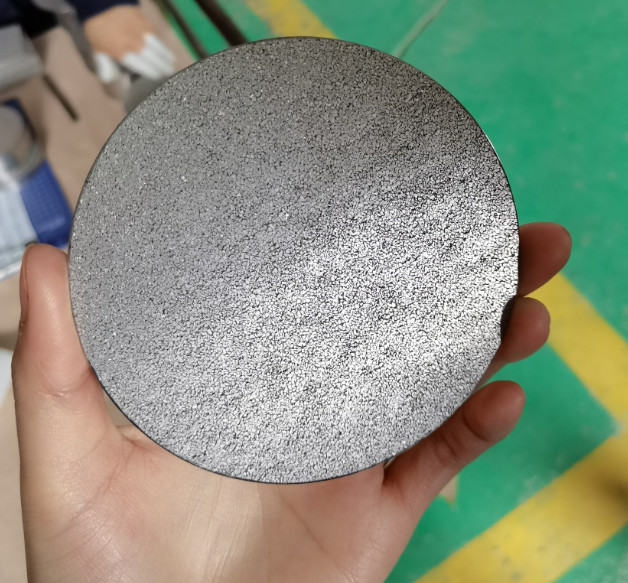

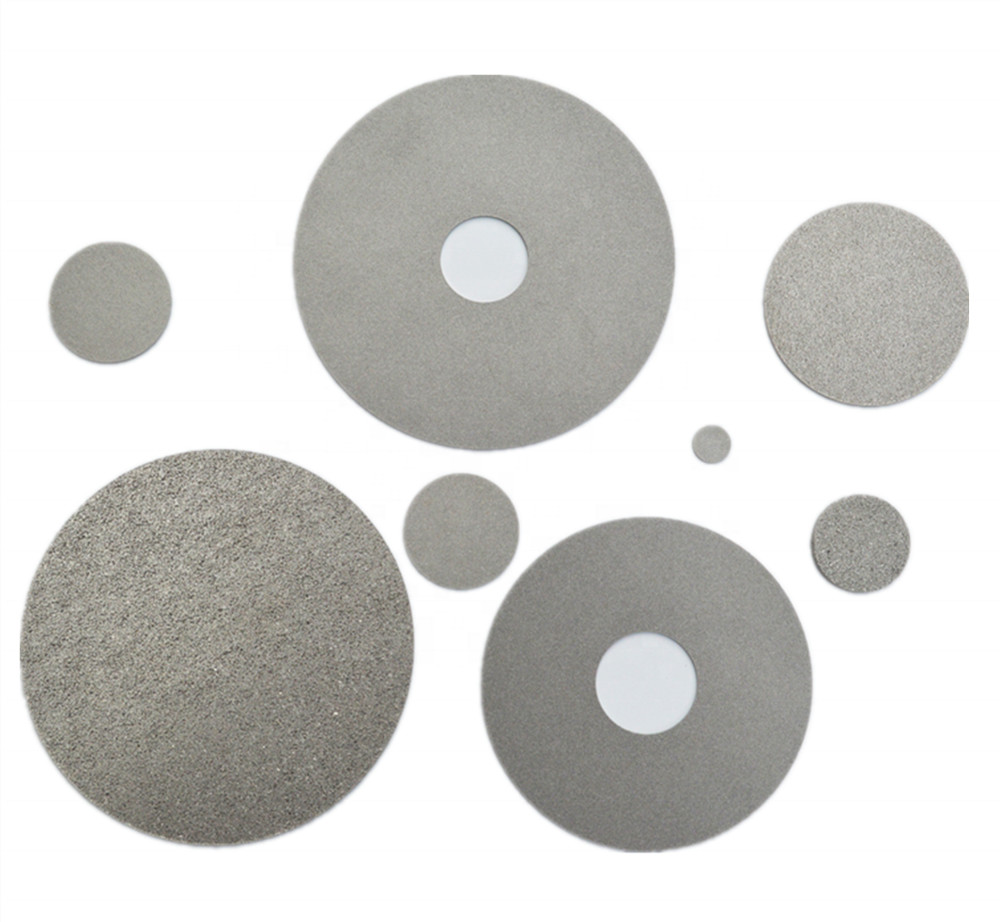

Sintered porous round discs for separation and filtration
Product Introduction
Metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.
Feature: The metallic powder sintered porous material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.
Advantage: Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance and heat dissipation, and can be repeatedly washed and used for many times.
Specification of titanium sintered porous materials
| Production | Diameter/Length | Diameter/Width | Thickness | Customized |
|
Sintered porous round discs |
Max Dia φ500mm | Max Dia φ500mm | 0.5-30mm | Yes |
|
Sintered porous sheets |
Max 800mm | Max Width 320mm | 0.5-30mm | Yes |
|
Sintered porous tubes |
Single Max Length 1200mm |
Max Diaφ200mm |
2-10mm |
Yes |
Features of titanium sintered porous materials:
| Material | FilterRating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
| Pure Titanium powder | 0.5um-80um | 25-45% | 3-800M³/M²hKPa | 2.5MPa | 300℃ | Round disc,sheet,tube,round bar,cap | 10-40cm²/cm³ |
